Wall logs, beams and boards

Standard Wood Using Rules

Which timber we stock and use in our projects. This is a quick reference for sales managers.

How to read this page

All sizes are in millimetres.
Wall thickness means the thickness of the wall logs in the building. Most elements are chosen by it.
Boards are listed as thickness × width.
Only products we actively use are listed. For anything else, contact the project coordinator.

1. Quick guide: what goes with each wall

Pick the wall thickness first, then read across. A dash means the element is not standard for that wall.

Wall	Wall log	Floor bearer	Column	purlinS
28	28 × 135	28 × 60	85 × 85	140 × 44
44	44 × 135	44 × 60	115 × 115	140 × 68 or 140 x44 for smaller projects
58	58 × 135	58 × 60	115 × 115	140 × 68
68	68 × 135	68 × 60	115 × 115 or 140 × 140	195 × 68
88	88 × 180	68 × 60	140 × 140	195 × 68
132	132 × 180	68 x 60	140 x 140	195 × 68

Larger floor bearers, beams, floor joists and glulam elements are available for all walls. See the sections below.

Glulam wood not available in stock, production deadline may increase if glulam wood is using

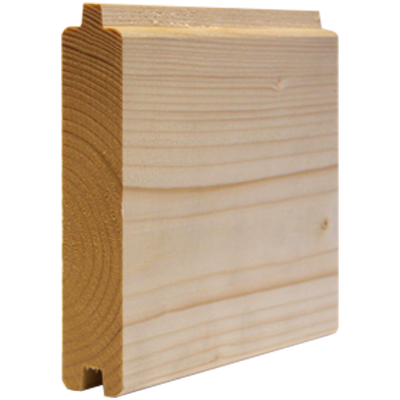

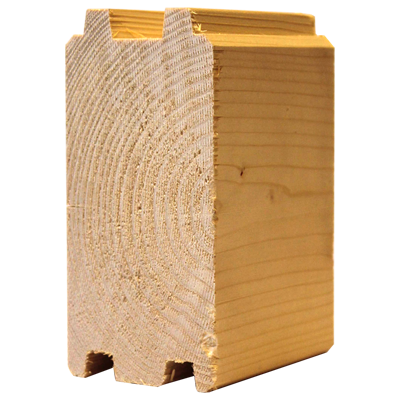

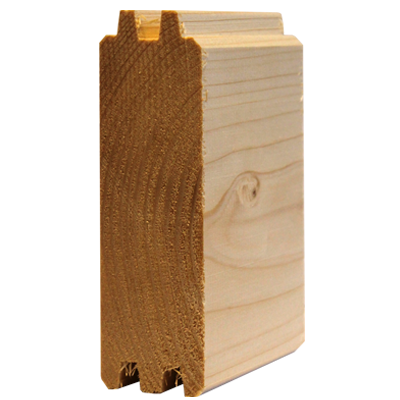

2. Wall logs

These are solid wood logs with a tongue-and-groove joint. The height shown is the visible height, and the full height including the tongue.

Thickness	Height	Standard MAX length	Shortest piece
28	135 (145)	5,975	297
44	135 (145)	5,960	200
58	135 (145)	5,000 - 5,360	200
68	135 (145)	5,000 - 5,360	200
88	180 (195)	6,960	200
132	180 (195)	6,960	200

3. Structural timber

Floor bearers

Always supplied impregnated. The length depends on actual quantities in the stock

Section	Used with walls
28 × 60	28
44 × 60	44
58 × 60	58
68 × 60	68, 88
100 × 44–68	All walls (28–132) - option if insulation applied
140 × 44–68	All walls (28–132) - option if insulation applied
195 × 68	All walls (28–132) - unique cases (rare)

Columns

Section	Used with walls	Length	Note
85 × 85	28	5,000 - 6,000
115 × 115	44–68	5,000 - 6,000
140 × 140	68–88	5,000 - 6,000
200 × 200	44–132	6,000 - 12,000	Glulam · special cases · on order, not available in stock

Beams

These are used with all walls (28–132) and come in a maximum 6,000 length.

Section	Length MAX
100 x 44	6,000
140 x 44	6,000
100 x 68	6,000
140 x 68	6,000

Floor joists

Section	Used with walls	Length MAX	Type
140 × 68	44–132	6,000	Solid
195 × 68	44–132	6,000	Solid
240 × 80	44–132	12,000	Glulam · special cases · on order, not available in stock

4. Roof purlins

Section	Used with walls	Length MAX	Note
140 × 44	28 (or smaller 44 houses)	6,000	Standard
140 × 68	44, 58	6,000	Standard
195 × 68	68–132	6,000	Standard
100 × 44–68	28–44	6,000	Special cases only, e.g. Colombo roof
180 × 80	44–132	4,800 / 6,000	Glulam · our own production
60–200 × 200–450	44–132	12,000	Glulam · special cases · on order, not available in stock

5. Boards & trim

These boards suit all walls (28–132).

Product	Size	Length max	Note
Floor board	19 × 110	5,100

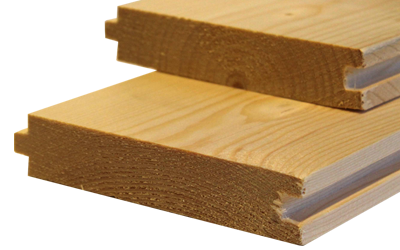

Floor board	28 × 110	6,000

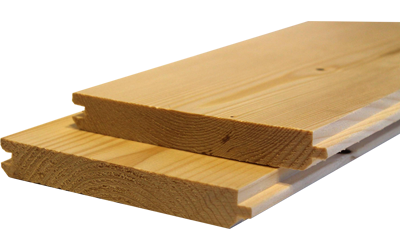

Roof board	19 × 110	5,100

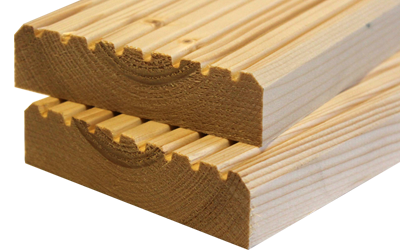

Terrace board	28 × 140	6,000	Ribbed surface
Cladding board (T&G)	19 × 135	6,000	Vertical or horizontal
Trim	28 × 22	6,000

6. Windboards (fascia)

These suit all walls (28–132). The length is max 6,000 unless noted.

Type	Code	Size	Note
Windboard A	WBA	19 × 113
Windboard B	WBB	19 × 70
Windboard C	WBC	19 × 40
Windboard D	WBD	25 × 30
Windboard Rhombus	WB-RMB	19 × 200	Length per project
Windboard Modern	WB-BT WB-TP	28 × 130	For modern roofs

For custom sizes, lengths or anything not listed here, contact the responsible project coordinator.
